FEATURES
§ Continuous fusing operation can increase the productivity.
§ The fusing width is 600/900mm, without limitation of the length.
§ The automatic belt correction device can ensure the upper and lower belts will not deviate.
§ The electronic thermostat and the constant temperature system controlled by solid state relay can minimize the temperature deviation.
§ The heating monitoring device can control the normal operation of the heating system.
§ The six groups of electrical heating tubes can make the even heat transmission of the heating system, which can be used for various cloths.
§ The imported Teflon fusing belt can ensure the even temperature.
§ It has anti-fold roller to deal with various cloths.
§ It has the belt mesh conveyor series, which is good for cooling
§ It has the device for auto cooling, constant-temperature and shutdown.
§ It has a device for pressure compression.
§ The specially-designed cleaning beam can clean the belt completely and can be easily changed.
§ Option: L is for lengthened belt.

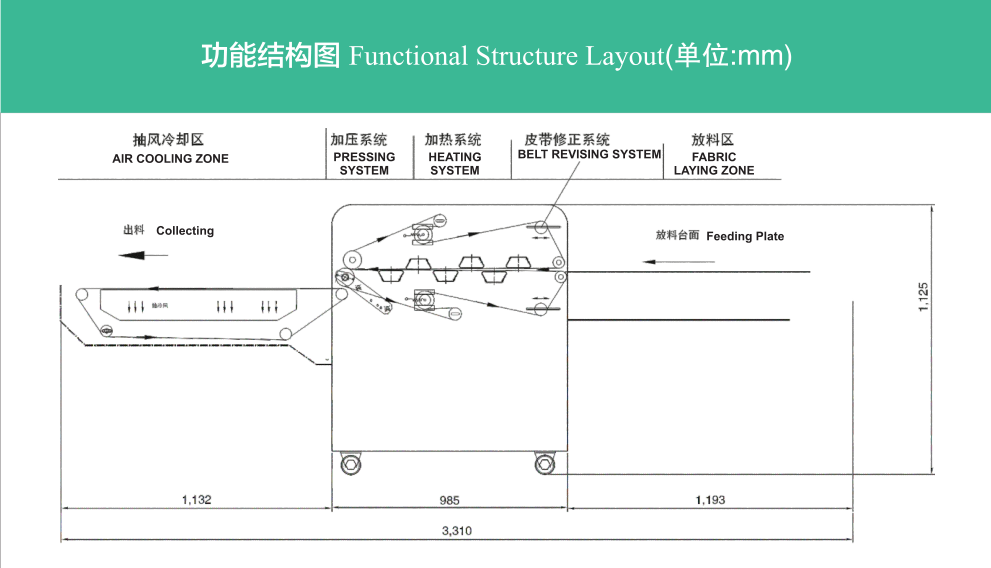

TF-900A Functional Structure Layout
Specification
Model | TF-600A | TF-900A |
| Power supply | 3P/380V | |
| Motor | 240 | |
| Power | 9.6 | 12 |
| Maximum pressure | 4 | |
| Set temperature | 常溫-200℃ | |
| Fusing Width | 600 | 900 |
| Fusing Time | 10-34 | |
| Cloth scraper | 標(biāo)準(zhǔn)刮片 Standard Strip-off | |
| Machine size LxWxH(mm) | 3310x1360x1420mm | 3310x1660x1420mm |
| Packing size LxWxH(mm) | 2270x1300x1400mm | 2310x1600x1400mm |
| N.W / G.W | 550/650kgs | 660/750kgs |
