APPLICATIONS
§ Reduce the size shrinkage of the cloth,
§ Prevent the size change and deformation during the production.
§ Enable the cloth cutting goes smoothly.
§ Make lining and shell fabric touch closely. No need to consider shrinkage after cutting, sewing, pressing Much improve the product quality and increase the product value added.
§ This shrinking and forming machine the best choice working with CAD and CAM systems.
FEATURES
§ Independent control for each section conveyor system feeding fabrics with tension free.
§ Wet steam and vibrator system make fabrics be softened completely.
§ The wet fabrics coming from vibrating area will be dried very quickly thru drying area with the appropriate temperature .
§ With powerful cooling system, the temperature of fabrics will be cool down promptly. The fabrics will be formed well due to the temperature difference.
§ Fold the fabrics back and forth with swing structure which will reduce the tension when rewinding.
§ Special auxiliary heating device can make up for the lack of steam heating. The temperature of drying area is fully adjustable.
§ The Meter Counter, equipped as standard, can accurately measure the length of the fabric after forming.

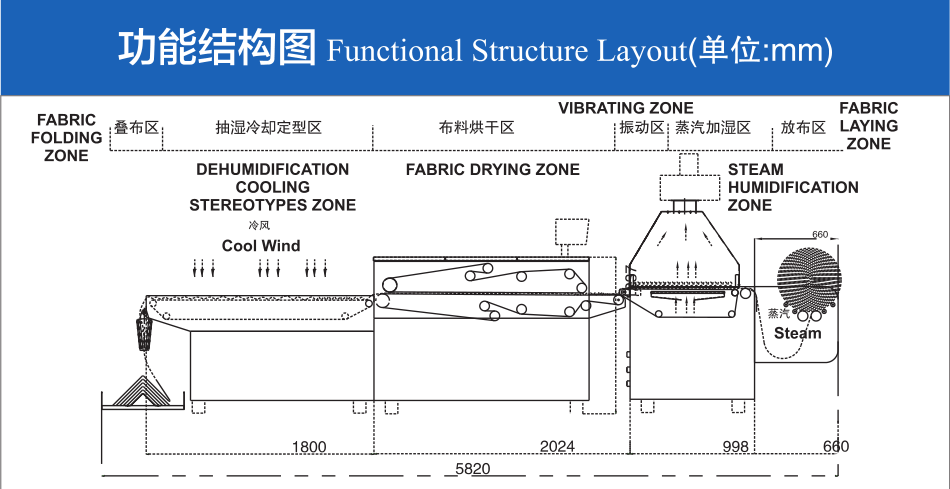

TF-1800 Functional Structure Layout
Specification
Model | TF-1800 |
| Power supply | 3P220V-380V |
| Air pressure | 0.5-0.7Mpa |
| Steam consumption | 150kg/hr |
| Shrink width | 1800mm |
| Total power | 25KW |
| Cooling motor | 0.75KW*5 |
| Main motor | 0.4KW |
| Conveyor motor | 0.2KW*2 |
| Cloth stand motor | 90W |
| Vibrating moto | 90W |
| Correcting motor | 6W*2 |
| Heating power | 20.4KW |
| Belt speed | 0-10m/min |
| Machine size LxWxH | 5820x2500x2000mm |
| N.W / G.W | 3000/3500kgs |
