MAIN DEVICE
§ Touch panel display:Easy to set up the length,number of layer,speed and steps.
§ Fabric lading sensor:Machine returns back to original position once fabric runsempty.
§ Cutting device:The auto-cutter can be easily dismounted.Travel length and speed of cutter are adjustable.
§ Automatic fabric relaxing control:To relax the fabric in advance and release the tension during spreading the fabric.
§ Edge control device:Automatic edge control during spreading fabric.
§ Automatic lifting device:It is automatic lifting according to the layer of cloth during spreading the fabric the lifting gauge can be adjusted.
§ Emergency stop:The brake lines are under two sides of table,and can be efficiently pulled upon emergency.
§ Fabric expanding device:It can be adjusted according to the different width and tension of fabrics,making fabrics free from tension.
FEATURES
§ Machine returns back to original position once fabric runs empty.
§ Simple operation increases production efficiency and also ensures the best quality.
§ The new arc mechanism ensures the elastic fabrics expanded perfectly.
§ The machine power will automatically shout off upon 5 minutes idle.
§ The spread laid fabric is not pulled when the emergency stop triggers.
§ PLC touch panel,user-friendly operation system.
§ Non-tension spreading.
§ The streamline shape can reduce the wind disturbance,noise and vibration.
§ Automatic fabric expanding system.
STANDARD EQUIPMENT
§ Memory for set up of spreading length
§ Layer counter
§ Edge control
§ Lamp of working status
§ Emergency stop
§ Auto-cutter
§ Rewinding device(Cloth roll)
§ Auto acceleration and deceleration by computer
§ Bucket type unwinding synchronically with relaxing function
§ fabric setting bar and fabric expander
§ Auto-lifting device
§ Adjustable cutter travel length
Optional
§ Tubular device
§ Safety sensor device
§ Tube device for modal fabrics
§ Riding platform
§ Blowing device for edge
§ Multi zero point
§ One side movable of catcher set
§ Catcher for face to face
Specification

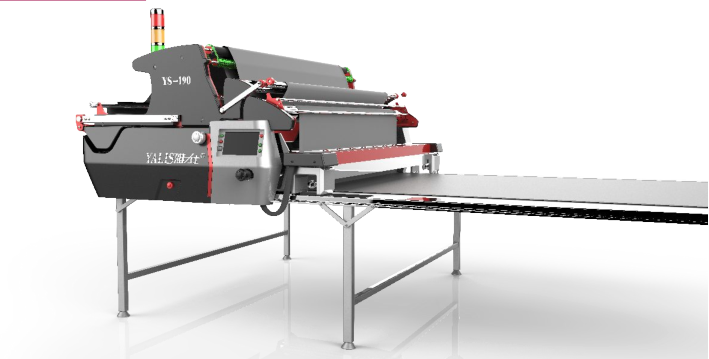

| Model | YS-190 | YS-210 |
| Power supply | 1P/220V | |
| Motor capacity | 1KW | |
| Maximum cloth width | 75"/1900 | 83"/1900 |
| Table width | 84"/2130 | 92"2330 |
| Machine weight | 300kgs | 360kgs |
| Cloth weight | 60kgs max | |
| Diameter of cloth | 450mm max | |
| Travel speed | 90m/min max | |
| Machine size | 2600x1800x950mm | 2800×1800×950mm |
| Packing size | 2800×2000×1250mm | 3000×2000×1250mm |
| N.W/G.W | 570/860kgs | 610/970kgs |
| Lay height | 標準型單拉ONE WAY 220mm，加高300mm 標準型雙拉FACE TO FACE 150mm，加高230mm | |
| Spreading methods | 單向拉布 ONE-WAY SPREADING (FACE UP) 雙向拉布 ZIGZAG SPREADING (FACE TO FACE) 多段式長短拉布 MULITIPLE LENGTH SPREADING(FACE UP) | |
