FEATURES
§ Cycled,9 pairs of magnetic sensor,excellent anti-disturbance.
§ High accuracy detecion location technology,LED indication.
§ Use LCD screen technology and based on multi-language operation system.
§ Level setup indication and real-time sensitivity display.
§ Optional conveying mode after alarm
§ Optional automatically restart.
§ Reliability mechanical frame design.High stable during detection.
§ Designed for universal AC power source supply,switch power supply.
| HEIGHT | DETECTION SENSIBILITY | REMARK |
| 100mm | 鐵球Φ0.8mm 0. 8mm steel to small cissors | 標(biāo)準(zhǔn)機(jī) Standard type |
| 120mm | 鐵球Φ0.8mm 0.8mm steel to small scissors | 工廠定做 Option at Factory |
| 150mm | 鐵球Φ1.0-1.2mm 1.0-1.2mm steel to small scissors | 工廠定做 Option at Factory |
| 200mm | 鐵球Φ1.5mm 1.5mm steel to small scissors | 工廠定做 Option at Factory |
Specification

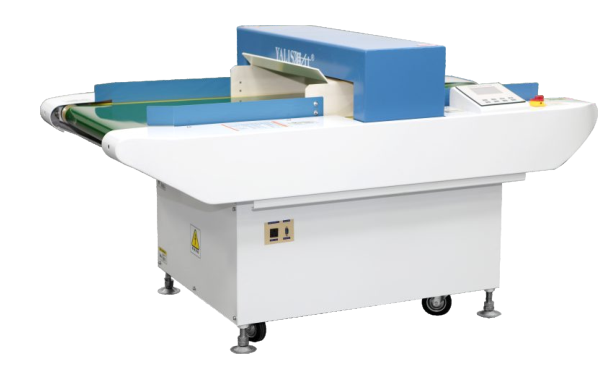

Model | YN-870 | YN-870D |
| Detection probe | Single Detective Head | Double Detective Heads |
| Detection method | Magnetic induction | |
| Detection sensitivity | 鐵球Φ0.8mm steel to samll scissors | |
| Detection adjustment | Max.100 steel to samll scissors | |
| Detection channel width | 600mm | |
| Alarm method | BUZZER/LED indicator lights | |
| Conveyor speed | 24m/min | |
| Power supply | AC100-240V 50-60Hz | |
| Power | 90W | |
| Machine size LxWxH(mm) | 1650x1040x920mm | |
| Packing size LxWxH(mm) | 1850x1200x1150mm | |
| N.W / G.W | 220/300kgs | |
