FEATURES
FOR lead-based stereotypes cuffs,vertical design,simple structure,have greatly improved pressure efficiency;
Using microcompuer-wide programmable logic controller (PLC) control;
into the whole touch-screen control panel, clear and comcise,easy to operate;
Accurately adjust the pressure and temperature,the pressure to achieve the desired effect of iron;
With three separate digital electronic engine temperature,precise temperature control;
Hand to operate switch engines designed to eusure that the use of safety.
Specification

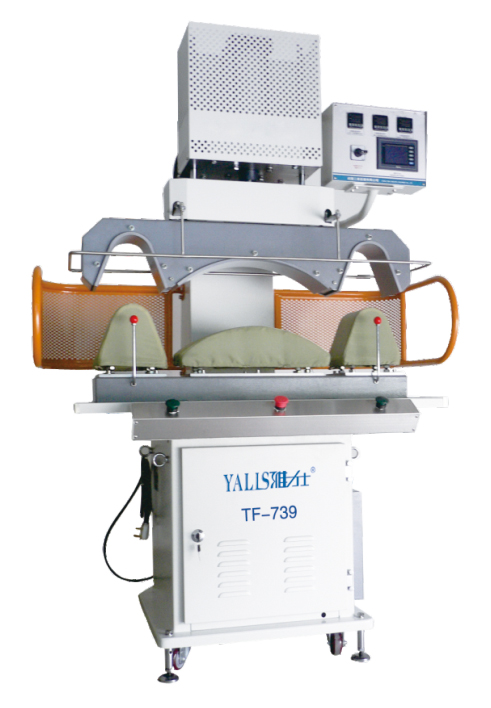

Model | TF-739 |
| Power supply | 1P/220V/50HZ |
| Air pressure | 0.4-0.6Mpa |
| Max pressure | 5kgf/cm2 |
| Heater | 3.8kw |
| Temperature | 室溫180℃ |
| Max temperature | 200℃ |
| Machine size LxWxH(mm) | 1250x900x1980mm |
| N.W / G.W | 450/500kgs |
