FEATURES
§ The machine is designed with 7 groups of heating system, entire machine arm strengthen structure.
§ The machine uses separate double-section microcomputer temperature controller control system.
§ Fully integrated the lining cloth adhesive and the fabric and go through an independent pressure system. The pressure roller uses silicone cylinder pressure, which ensures a steady pressure and making the adhesive strength meet the best performance.
§ The top and bottom conveyor belts are equipped with automatic correction system to ensure stable operation of the conveyor belt.
§ The back section is equipped with powerful ventilation cooling system, which eases and cools down the fabric in a short time after bonding, ensuring the adhesive strength meet the best performance.
§ The machine is suitable for the bonding work of entire volume of high temperature lining fabric, and able to be equipped with transport and material receiving devices.
§ Meet the needs of textile companies including the suits, casual wear, women clothes, etc.

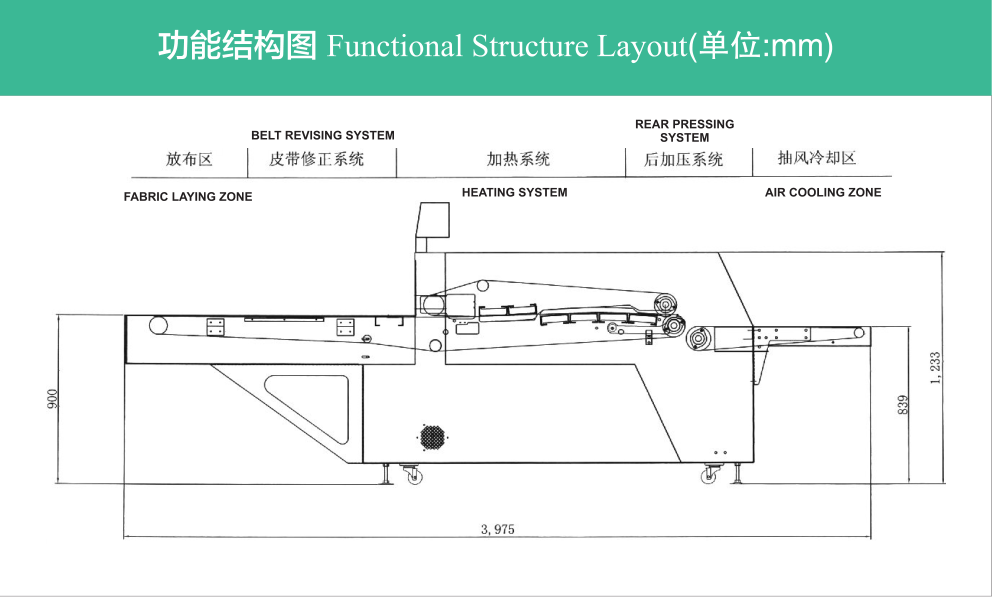

TF-1000B Functional Structure Layout
Specification
Model | TF-1000B | |
| Power supply | 3P/380V | |
| Motor | 400 | |
| Power | 21 | |
| Maximum pressure | 4 | |
| Set temperature | 常溫-200℃ | |
| Fusing Width(mm) | 1000 | |
| Fusing Time(sec) | 10-34 | |
| Cloth scraper | 標(biāo)準(zhǔn)刮片 Standard Strip-off | |
| Machine size LxWxH(mm) | 3980x1520x1500mm | |
| Packing size LxWxH(mm) | 3850x1660x1710mm | |
| N.W / G.W | 1100/1200kgs | |
