FEATURES
§ The machine aims at premium leather jacket. The considerable improvement ensures the same pigment figure.
§ The bonding width reaches 900mm while the length is unlimited.
§ Automatic belt correcting device that make sure the top and bottom belt will not deviate.
§ Electronic thermostat and SSR control the temperature difference to minimum.
§ The heating control equipment controls the normal operation of the heating system.
§ 6 groups of galvanothermy tubes offer an average heating of the heating system that deal with all kinds of fabric.
§ Import Teflon adhesion belt ensure an average temperature.
§ The roller equipped with wrinkle protection is able to deal with various fabrics.
§ The machine is equipped with wire-belt conveyor that offers a good cooling effect.
§ The machine is equipped with automatic cooling thermostat and emergency stop device.
§ Pneumatic Pressure Device.
§ Special-designed cleaning cloth rod which thoroughly clean the belt and convenient to change.
§ Option: Longer L belt.

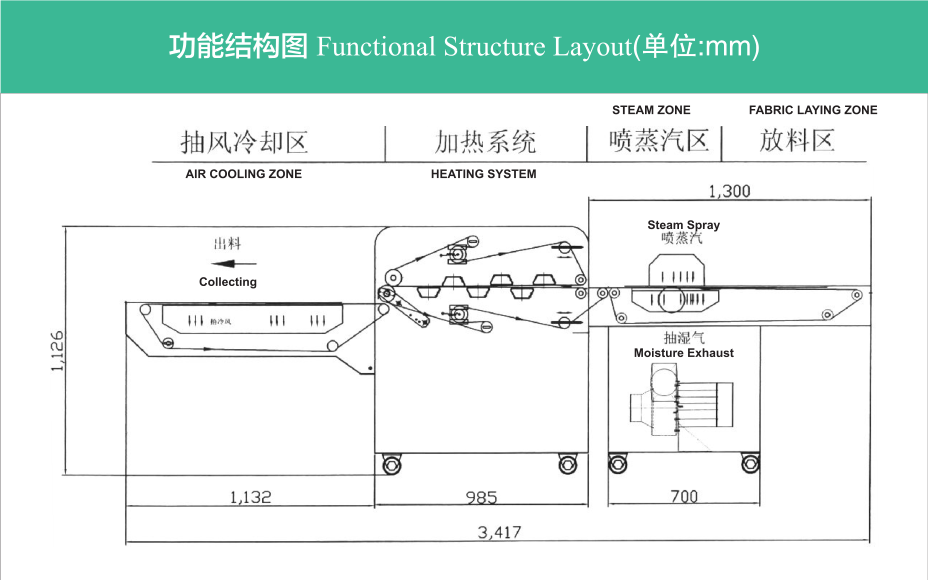

TF-900RS Functional Structure Layout
Specification
Model | TF-900RS | |
| Power supply | 3P/380V | |
| Motor | 1190 | |
| Power | 12 | |
| Maximum pressure | 12 | |
| Set temperature | 常溫-200℃ | |
| Fusing Width | 900 | |
| Fusing Time(sec) | 10-34 | |
| Cloth scrape | 標(biāo)準(zhǔn)刮片 Standard Strip-off | |
| Machine size LxWxH(mm) | 3420x1660x1420mm | |
| Packing size LxWxH(mm) | A:2100x1660x1570mm B:1430x1660x1570mm | |
| N.W / G.W | 880/950kgs | |
