FEATURES
§ The purpose of Shrinking technique is to have raw fabrics softenedand formed. By adjusting the direction of the silk yarn the raw fabrics will be fixed and formed.
§ The raw cloth after shrink will not crumple during sewing, what's more, it’s easier to be sewed. Therefore, customer no need to consider the cloth stretch or shrinkage during making garments.
§ After shrinking process, the size of raw fabrics get fixed. The fabrics feel very good as well. Besides, it will not shrink when ironing again achieving the best quality.
§ This shrinking and forming machine the best choice working with CAD and CAM systems.

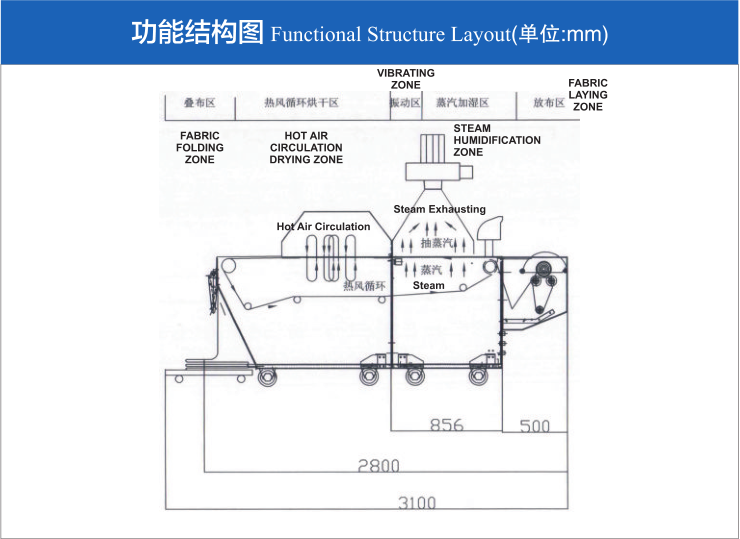

TF-2800 Functional Structure Layout
Specification
Model | TF-2800 |
| Power supply | 3P220V-380V |
| Air pressure | 0.5-0.7Mpa |
| Steam consumption | 120kg/hr |
| Shrink width | 1850mm |
| Total powe | 1.9KW |
| Cooling motor | 0.75KW*2 |
| Main motor | 0.4KW |
| Cloth stand motor | 90W |
| Belt speed | 0-10m/min |
| Machine size LxWxH | 2800x2600x1950mm |
| N.W / G.W凈/毛重 | 1200/1500kgs |
